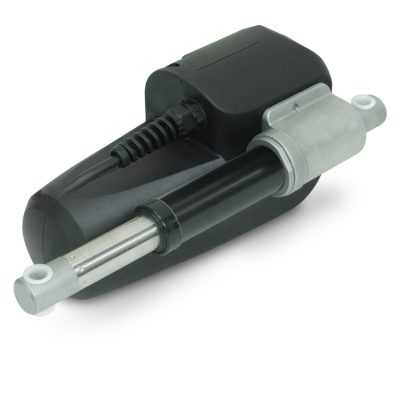

VM56



is a powerful but compact actuator up to 5000N max. thrust that is suitable for wide range of applications including medical, homecare, furniture and industrial…etc. The motor orientation can be chosen in every 30 degrees of whole round, which makes it an ideal solution for applications where installation space is limited.



Main applications: Furniture, homecare, medical, industrial



Technical Data
Options
Related Products
Technical Data
- Input voltage: 24V DC
- Max. load: 5000N (push) 3500N (pull)
- Max. speed at no load: 43 mm/sec
- Max. speed at full load: 4 mm/sec @5000N
- Stroke: 50 ~ 400 mm
- Max. current: 5A @ 24V DC
- Noise Level: ≦65dB
- Motor orientation: 360° in steps of every 30°
- IP Protection level: IPX1
- Color: Black
- Preset cam type limit switches
- Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
- Ambient operation temperature: -25°C ~ +65°C
- Certified: CE Marking, EMC Directive 93/42/EEC
Options
- Positioning signal feedback with Hall effect sensor x 2
- Positioning feedback with Reed sensor
- Positioning feedback with Potentiometer (POT)
- IPX6 waterproof case
Related Products

- Control box: LK2P, LK4P, LK4P-HP, VM6C, LK4P-SY
