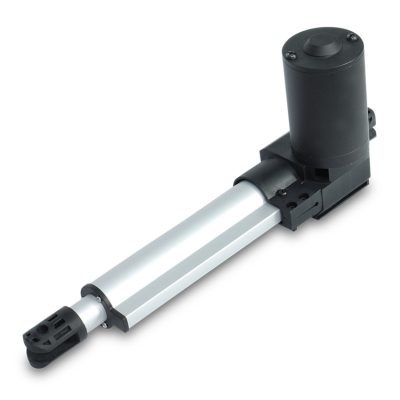

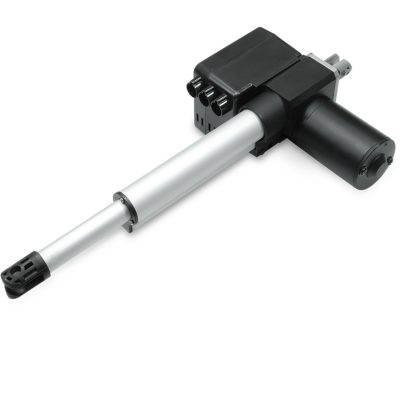

is a quiet and powerful actuator up to 6000N thrust, designed for use in furniture application. Our T control box, which can be perfectly attached and integrated to MO63OM60, is available for customers to choose.
Main applications: Furniture
Technical Data
Options
Related Products
Technical Data
- Input voltage: 24V DC / 12V DC
- Max. load: 6000N (push) / 4000N (pull)
- Max. speed at no load: 33.3 mm/sec
- Max. speed at full load: 2.9 mm/sec @ 6000N
- Stroke: 50 ~ 300 mm
- Noise level: ≦50dB
- IP Protection level: IP42
- Color: Black
- Preset limit switches
- Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
- Ambient operation temperature: -20°C ~ +65°C
- Certified: CE Marking, EMC Directive 2014/30/EU, UL 962 Standard for Household and Commercial Furnishings
Options
- Positioning signal feedback with Hall effect sensor x 1
- Positioning signal feedback with Hall effect sensor x 2
- Mechanical push only extension tube
- Mechanical brake
- Turn 90° Pivot orientation of rear connector
Related Products
- Control box: T Control, LB1, LB2, LK3T, LK4M, LKT2, LKTR, LK3T-SY, LK4M-S, LK4M-B, LK3T-SYD
