MTL3

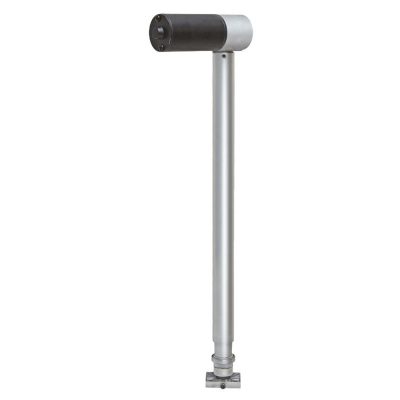

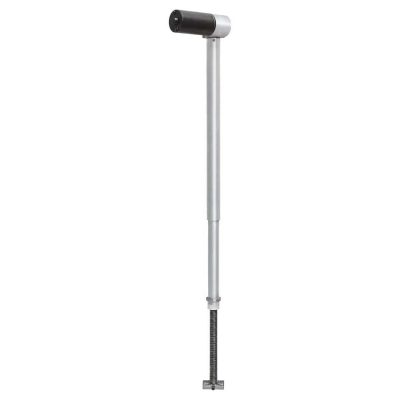

is a 3-section leg mainly used for electric height adjustable tables.Customers can put MO63MTL3 into the legs, either in square or round shape. The compact transmission design provides quiet and quick operation. Besides, the 3-section mechanism is ideal for adjustable tables that require smaller installation lengths and longer strokes.



Main applications: Furniture
Technical Data
Options
Related Products
Technical Data
- Input voltage: 24 ~ 32V DC
- Max. push load: 1200N
- Typical speed at no load: 45 mm/sec
- Typical speed at full load: 26 mm/sec (1200N load)
- Stroke: 650 mm
- Life cycle: More than 10,000 cycle under full load
- Positioning feedback with dual Hall effect sensors
- IP Protection level: IP20
- Noise level: ≦50dB
- Duty cycle: 10%, max. 1 min. continuous operation in 10 min.
- CE Marking, EMC Directive 2014/30/EU,
- UL 962 Standard for Household and Commercial Furnishings.
Options

- Power cord length: 1200, 2000 mm

Related Products

- Control box: MTC3
