MUC2
MUC2-1
MUC2

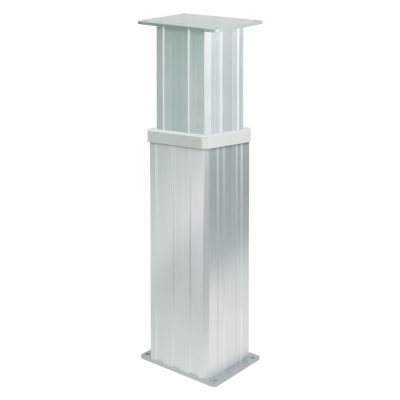

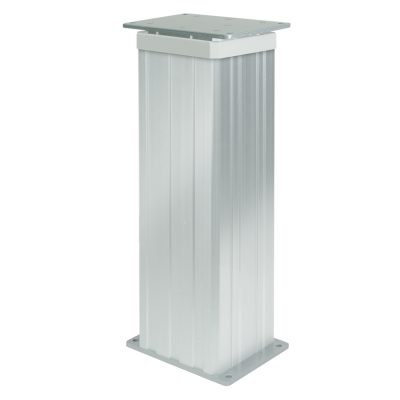

is a 2-part in-line lifting column featuring quiet and moving speed. Attributing to robust design, MO63MUC2 can be used as a single column or combined columns as synchronization system, which is applicable to lifting table, work bench, and work station… etc.
Main applications: Homecare, furniture
Technical Data
Options
Related Products
Technical Data
- Input voltage: 24V DC
- Max. load: 2000N
- Max. speed at no load: 18 mm/sec
- Max. speed at full load: 13 mm/sec
- Stroke: 450 mm, 261 mm, 140 mm
- Max. current: 4.5A @ 29V DC
- Bending moment: 1000Nm (static) / 750Nm (dynamic)
- Anodized aluminum body
- Preset limit switches
- Noise level: ≦53dB
- IP Protection level: IP21
- Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
- Ambient operation temperature: 0°C ~ +45°C
- Certified: CE marking, EMC Directive 2014/53/EU
Options
- Digital positioning feedback with Hall effect sensors x 2
Related Products
- Control box: MTC3, LK4P-SY, LK5P-M, LK4M-S, LK4M-B
